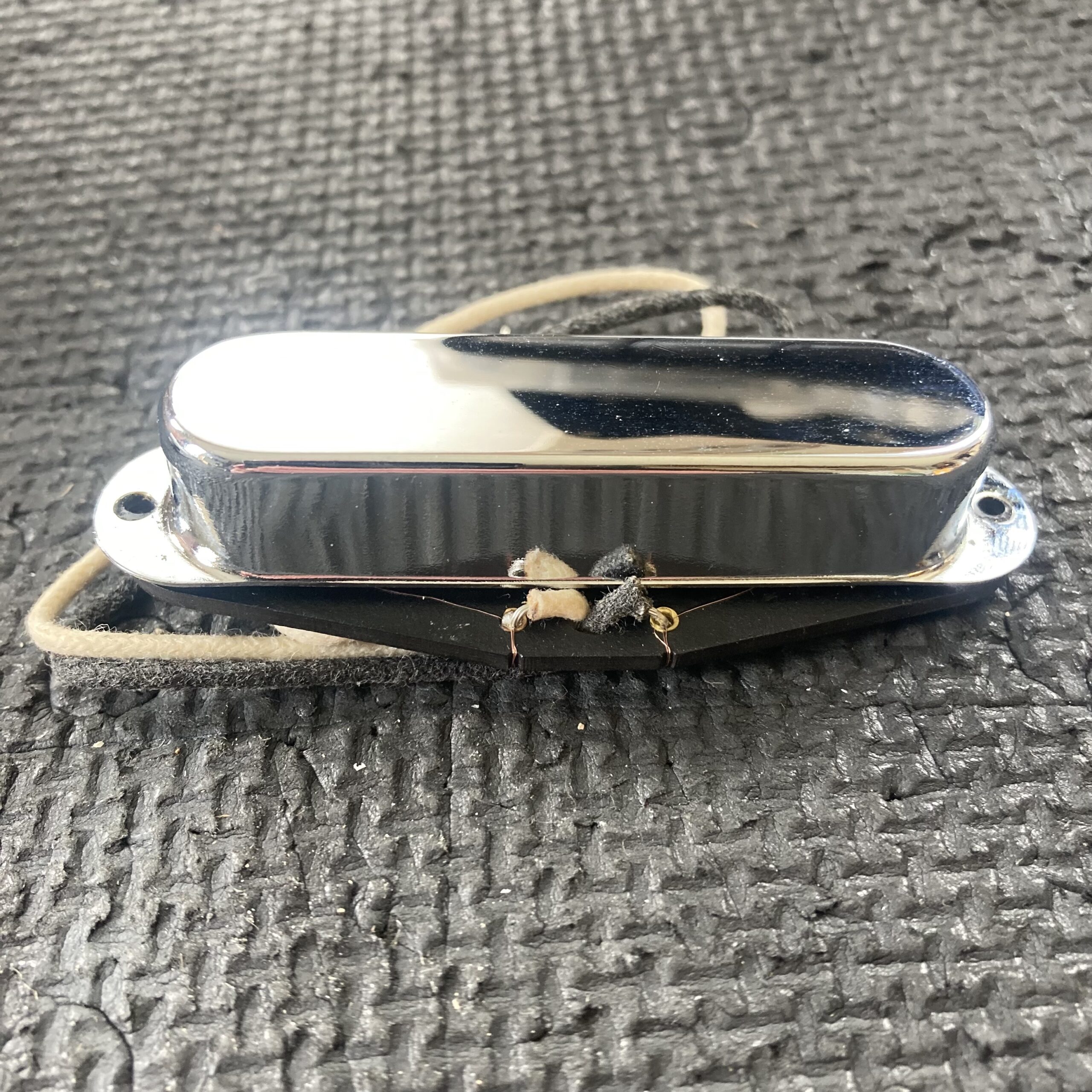

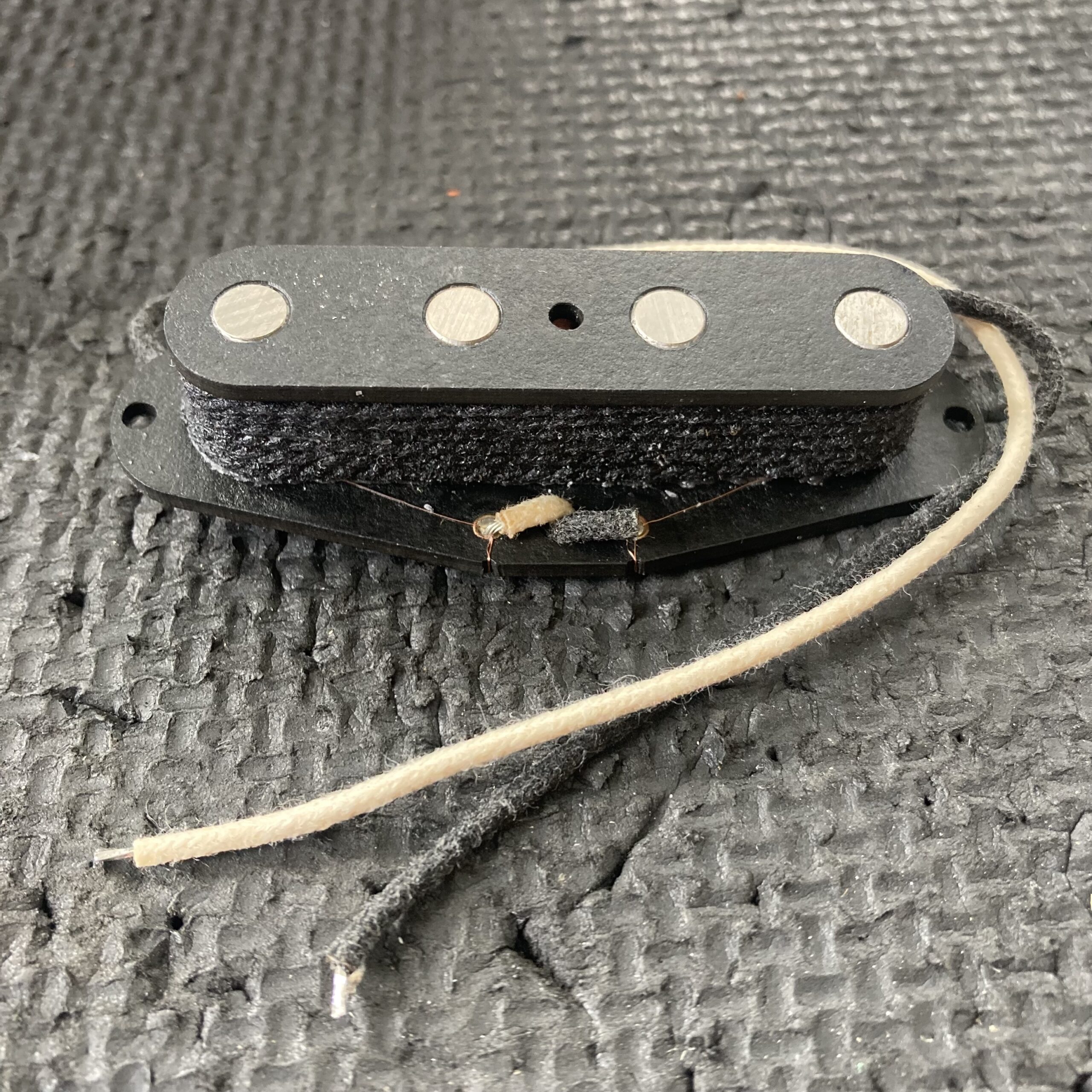

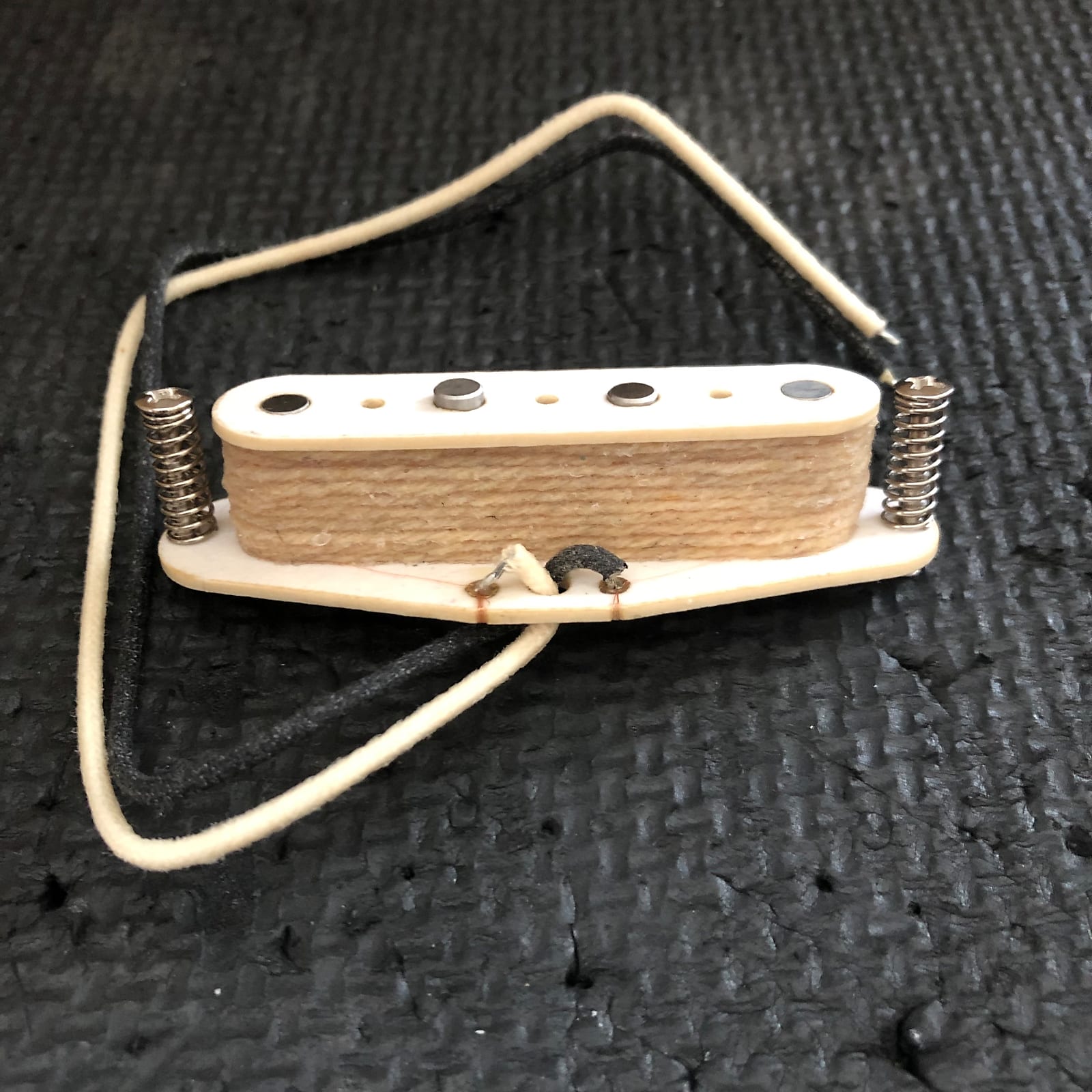

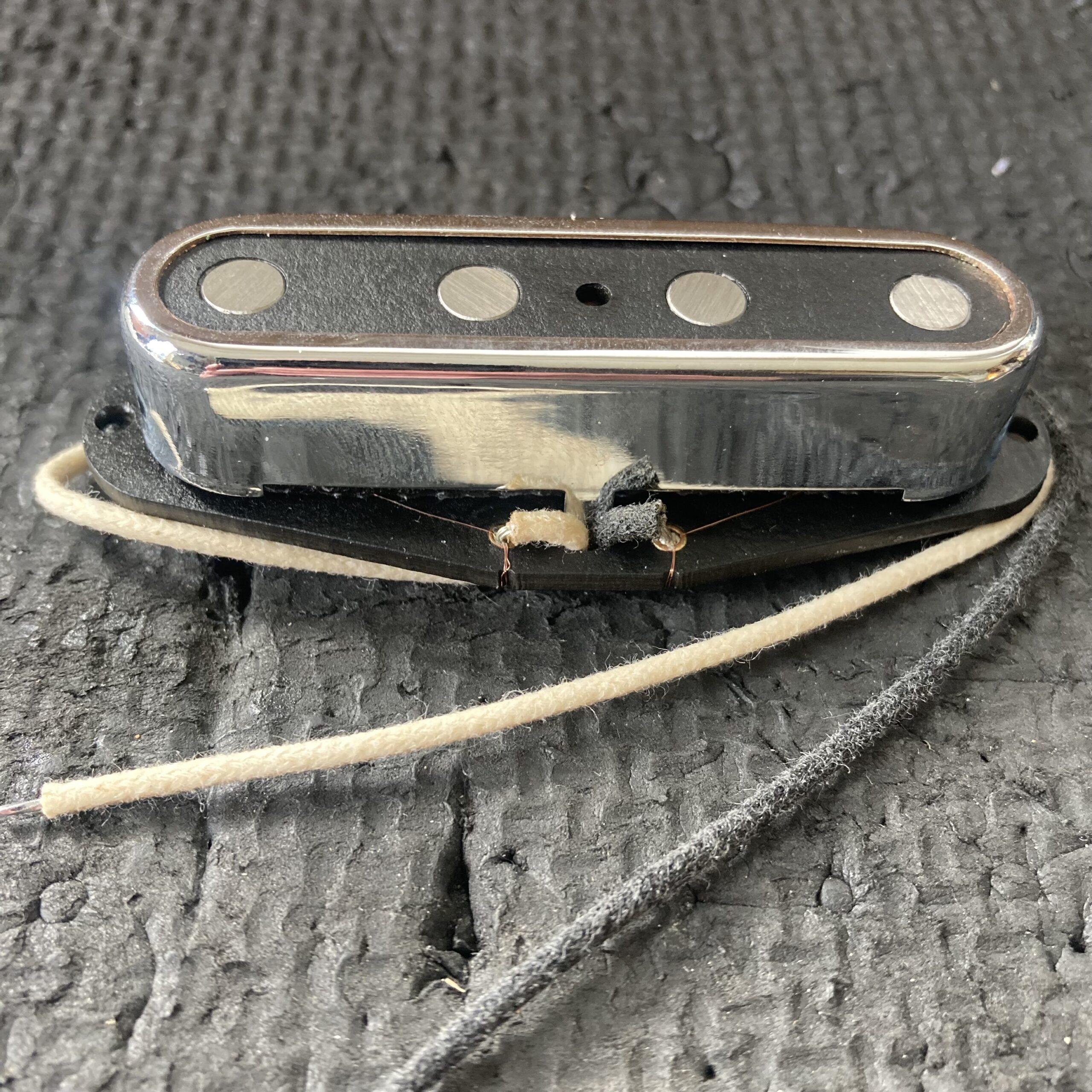

Specially designed as a direct replacement for ’50s early Precision bass guitars this pickup will fit directly into your P without the need to drill any holes. Fitment to non-Fender models may require holes to be drilled or the pickup cavity to be enlarged.
DC Resistance: 7 KOhm or 9.2 KOhm
The lower bobbin plate measures 83mm x 25mm.
Upper bobbin measures 67mm x 17mm.
The pickup is approximately 18mm deep in total.
Screw holes are 77mm apart.
Pole spacing is 17mm.
Wires are cloth covered.
